Panasonic essential tape feeder N610146226AA(N610111719AA)for RHS/RHS2B/RG131/RL131/RL132/RL132/NB168 AI machines
1. Product Description / Introduction

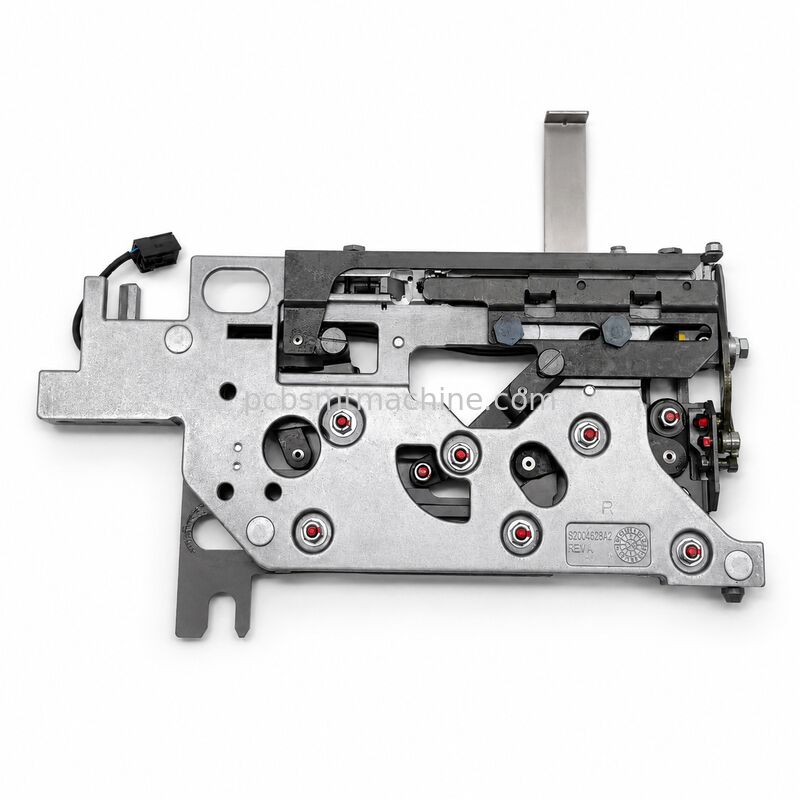

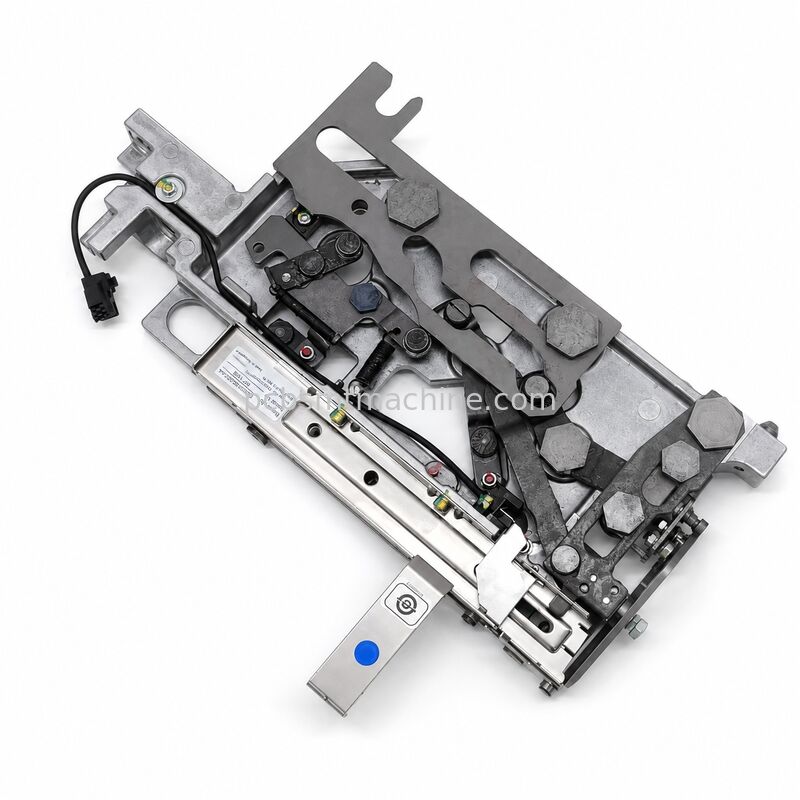

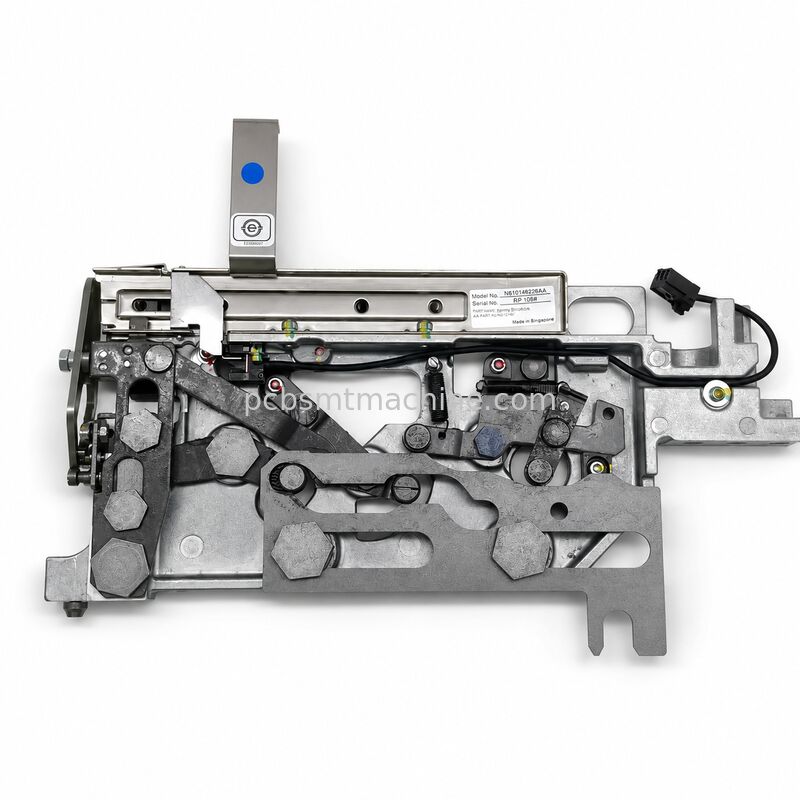

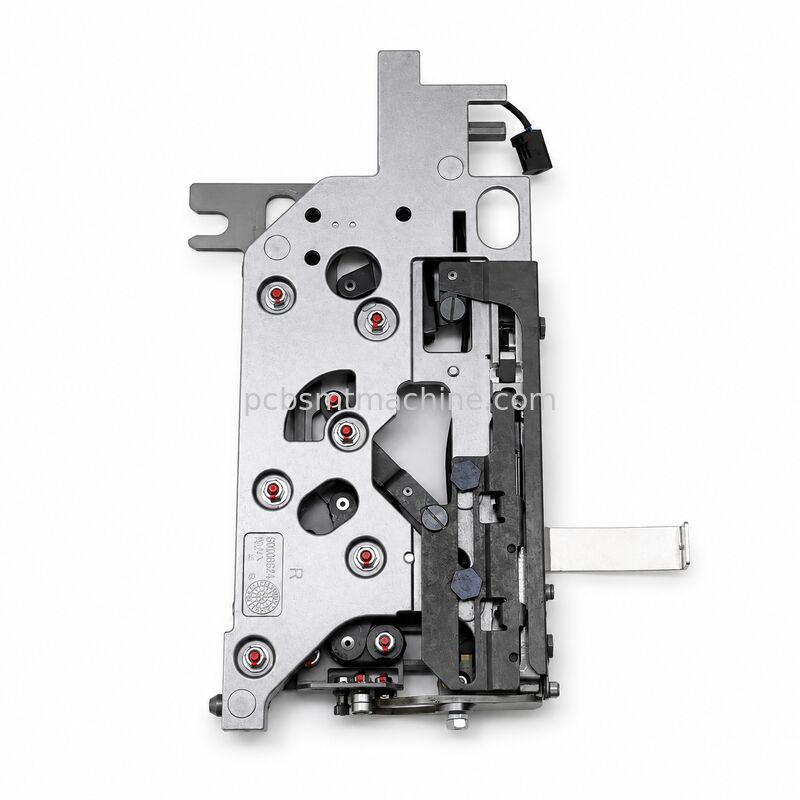

The N610146226AA / N610111719AA is a professional Panasonic essential tape feeder, specially configured for the feeder assembly of Panasonic RL132 high-speed radial lead component insertion machines. As a core original accessory for radial component feeding, N610146226AA / N610111719AA is categorized under the TAPE FEEDER SECT. (25.4 × 10.0) in the official RL132 spare parts catalogue, with the standard official name of Tape Feeder Unit.
Designed exclusively for radial lead component feeding and pre-insertion positioning work, N610146226AA / N610111719AA perfectly matches the daily operation, parts replacement and equipment maintenance of RL132 series insertion machines. It also provides reliable accessory support for refurbished and overhauled RL132 equipment. The applicable official machine models of the Panasonic RL132 product family cover NM-EJR5A and NM-EJR6A.
2. Product Parameters
All technical specifications of N610146226AA / N610111719AA strictly follow Panasonic’s original factory standards, with full compatibility for designated RL132 series equipment. The detailed parameter information is sorted out as follows:
|
Item
|
Information
|
|
Part No.
|
N610111719AA (N610146226AA)
|
|
Product Name
|
Tape Feeder Unit
|
|
Brand
|
Panasonic
|
|
Applicable Machine
|
Panasonic RL132
|
|
Host Machine Model
|
NM-EJR5A / NM-EJR6A
|
|
Machine Type
|
High-speed radial lead component insertion machine
|
|
Feeder Section Marking
|
25.4 × 10.0
|
|
Standard RL132 Component Pitch
|
2.5 / 5.0 mm
|
|
Optional RL132 Component Pitch
|
7.5 / 10.0 mm
|
|
Typical Applicable Components
|
Resistors, electrolytic capacitors, ceramic capacitors, LEDs, transistors, filters, resistor networks
|
According to the official technical documents of Panasonic RL132 equipment, the machine supports a maximum insertion speed of 0.14 seconds per component, and adopts a mature sequential component supply system. As the core feeding component, N610146226AA / N610111719AA fully adapts to this operating mechanism to ensure consistent machine operating efficiency.
3. Product Features
It is important to clarify that N610146226AA / N610111719AA is a professional mechanical feeding module for radial lead component insertion equipment, which is completely different from the conventional CM and NPM series SMT placement feeders on the market.
This tape feeder unit undertakes the core work of stable component conveying, accurate material tape guiding and standard pre-insertion positioning for RL132 equipment. It is the key component to guarantee the continuous and stable operation of radial insertion procedures. For users purchasing second-hand or refurbished N610146226AA / N610111719AA units, it is recommended to focus on multiple key parts during inspection, including the overall frame structure, feeder guide rail, sliding parts, transmission lever mechanism, tape guide assembly, cutting tool area, sensing unit, matching cables and connecting connectors, to ensure the equipment meets production standards.
4. F&Q
Q1: Is N610111719AA an SMT placement feeder?
No. This accessory model matches Panasonic RL132 radial insertion equipment instead of CM or NPM SMT placement machines. The applicable equipment scenario of N610146226AA(N610111719AA) is uniquely positioned for radial lead insertion production lines.
Q2: Which machine should it be checked against?
All matching and calibration work needs to be carried out targeting Panasonic RL132 series models, specifically NM-EJR5A and NM-EJR6A.
Q3: What should be verified before purchase?
Before purchasing the N610146226AA(N610111719AA) feeder unit, buyers need to confirm the official part number, standard feeder section size marking, as well as the integrity and working condition of connectors, sensors and cutter components, and verify the overall compatibility certification provided by the supplier.
